Identification Products
PEP Printable Sleeves
Heat Shrink Marker Sleeves for Permanent Wire & Cable Identification
2:1 Shrink Ratio
Thermal Transfer
Laser Compatible
RoHS Compliant
ISO 9001:2015
Thermal Transfer
Laser Compatible
RoHS Compliant
ISO 9001:2015
PEP Printable Sleeves are specially formulated flame retardant heat shrinkable polyolefin marker sleeves, designed to meet the permanent wire and cable marking needs of critical industries. The durable polyolefin material ensures printed identification remains legible through the operational life of the installation — even in harsh environments. Compatible with standard thermal transfer and laser printers, they are supplied in both continuous and ladder (pre-cut) formats for maximum production flexibility.
Quick Specifications
Material
Flame Retardant Polyolefin
Flame Retardant Polyolefin
Shrink Ratio
2:1
2:1
Operating Temperature
-55°C to +135°C
-55°C to +135°C
Minimum Shrink Temperature
120°C
120°C
Standard Colors
Yellow, White
Yellow, White
Printing Mode
Single & Double Sided
Single & Double Sided
Supply Format
Continuous / Ladder (Pre-cut)
Continuous / Ladder (Pre-cut)
2:1
Shrink Ratio
-55° to +135°C
Operating Range
2
Supply Formats
30+
Years Expertise
Technical Data
Full specifications, dimensions, and packaging information
Printer Compatible
Works with both thermal transfer and laser printers. Supports single and double sided printing formats for complete wire marking flexibility.
Flame Retardant
Made from durable, flame retardant polyolefin compound — suitable for safety-critical wire marking in defense, aerospace and power installations.
Permanent Identification
Once shrunk, printed markings remain legible throughout the operational life of the installation. Resistant to abrasion, solvents and UV exposure.
Two Supply Formats
Available in continuous reels for flexible cutting or pre-cut ladder format for high-speed automated printing and application processes.
Yellow & White Standard
Standard yellow and white colours provide high contrast for printed text. Custom colours available on request for specific colour coding requirements.
RoHS Compliant
Fully compliant with RoHS environmental standards. ISO 9001:2015 quality management certification ensures consistent batch-to-batch quality.
All dimensions in mm. Custom sizes available on request — contact us with your specific requirements.
| Size (Supplied ID) | Supplied ID — D (mm) | Flatten Width — W (mm) | Wall Thickness (mm) | Recovered ID — d (mm) |
|---|---|---|---|---|
| Φ 1.6 | 1.6 ± 0.20 | 3.5 ± 0.3 | 0.45 ± 0.10 | ≤ 0.80 |
| Φ 2.4 | 2.4 ± 0.20 | 5.0 ± 0.3 | 0.45 ± 0.10 | ≤ 1.20 |
| Φ 3.2 | 3.2 ± 0.23 | 6.2 ± 0.4 | 0.45 ± 0.10 | ≤ 1.60 |
| Φ 4.8 | 4.8 ± 0.25 | 8.8 ± 0.4 | 0.48 ± 0.10 | ≤ 2.40 |
| Φ 6.4 | 6.4 ± 0.28 | 11.4 ± 0.4 | 0.50 ± 0.10 | ≤ 3.20 |
| Φ 9.5 | 9.5 ± 0.32 | 16.5 ± 0.5 | 0.50 ± 0.11 | ≤ 4.75 |
| Φ 12.7 | 12.7 ± 0.36 | 21.6 ± 0.6 | 0.52 ± 0.11 | ≤ 6.35 |
| Φ 19.0 | 19.0 ± 0.40 | 32.0 ± 0.6 | 0.53 ± 0.11 | ≤ 9.50 |
| Φ 25.4 | 25.4 ± 0.45 | 42.2 ± 0.7 | 0.55 ± 0.12 | ≤ 12.70 |
* Sizes above are indicative. Please contact us for the full size range and custom dimensions.

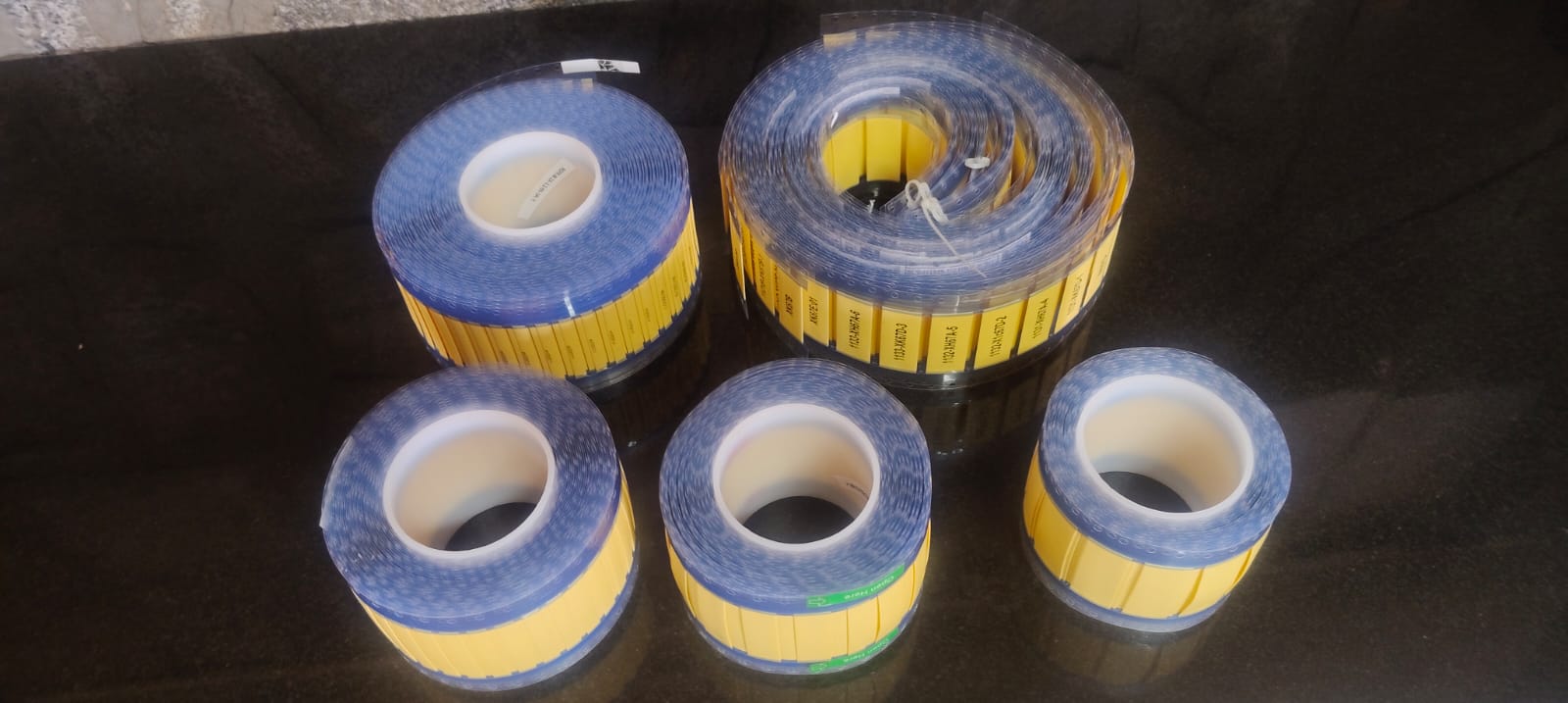

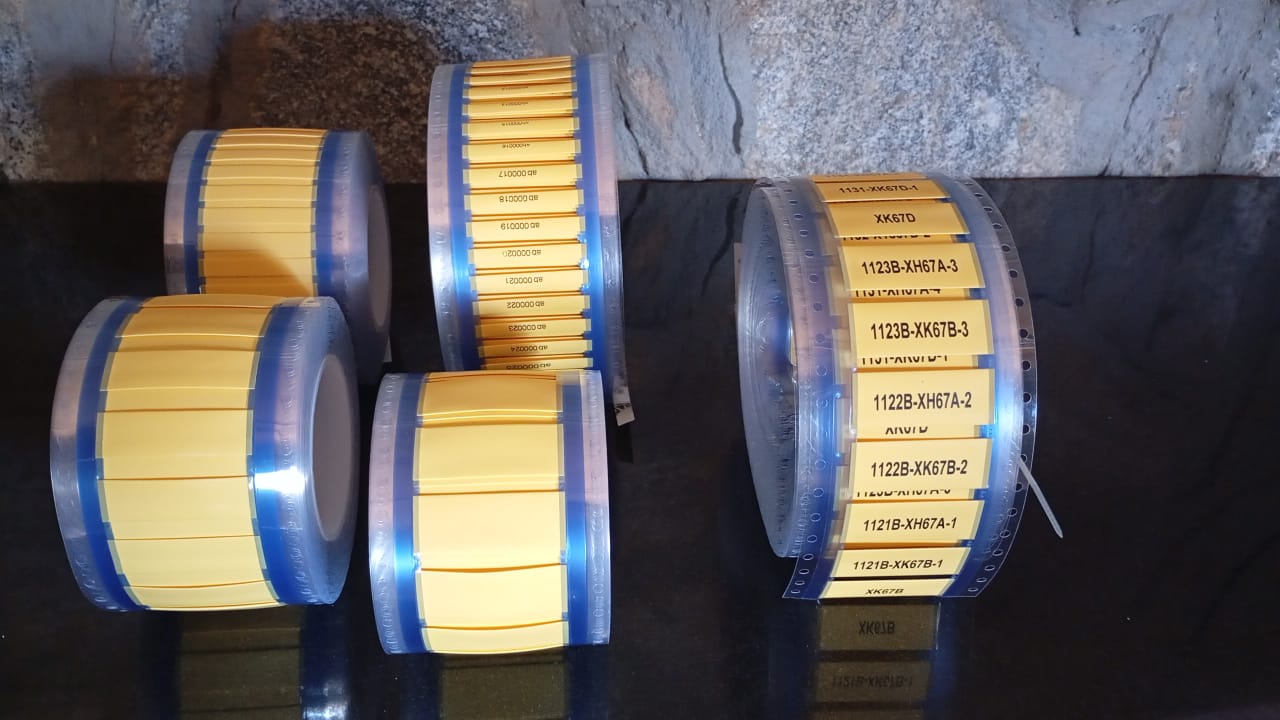

Ladder Format (Pre-Cut)
Pre-cut sleeves held in a ladder carrier strip. Ideal for high-speed automated printing lines. Consistent spacing ensures reliable printer feed.
Continuous Reel
Continuous tubing on paper or plastic reels. Cut to any length required. Flexible and economical for varied marking needs.
| Size (Supplied ID) | Ladder Format (pcs/reel) | Continuous — Paper Reel (m/reel) | Continuous — Plastic Reel (m/reel) |
|---|---|---|---|
| Φ 1.6 | 2500 | 50 | 25 |
| Φ 2.4 | 2500 | 50 | 25 |
| Φ 3.2 | 2000 | 100 | 25 |
| Φ 4.8 | 2000 | 100 | 25 |
| Φ 6.4 | 2000 | 100 | 25 |
| Φ 9.5 | 1000 | 100 | 25 |
| Φ 12.7 | 1000 | 100 | 25 |
| Φ 19.0 | 500 | 100 | 25 |
| Φ 25.4 | 500 | 50 | 25 |
🖨️ Thermal Transfer Printers
- Standard industrial thermal transfer printers
- Use resin-based ribbon for best durability
- Produces sharp, solvent-resistant print
- Ideal for high-volume production runs
- Compatible with ladder format and continuous reel
🖨️ Laser Printers
- Standard desktop and industrial laser printers
- No ribbon required — direct toner printing
- Economical for lower volume requirements
- Good for prototyping and small batch marking
- Available in custom sheet format on request
Printer Compatible
Works with both thermal transfer and laser printers. Supports single and double sided printing formats for complete wire marking flexibility.
Flame Retardant
Made from durable, flame retardant polyolefin compound — suitable for safety-critical wire marking in defense, aerospace and power installations.
Permanent Identification
Once shrunk, printed markings remain legible throughout the operational life of the installation. Resistant to abrasion, solvents and UV exposure.
Two Supply Formats
Available in continuous reels for flexible cutting or pre-cut ladder format for high-speed automated printing and application processes.
Yellow & White Standard
Standard yellow and white colours provide high contrast for printed text. Custom colours available on request for specific colour coding requirements.
RoHS Compliant
Fully compliant with RoHS environmental standards. ISO 9001:2015 quality management certification ensures consistent batch-to-batch quality.
All dimensions in mm. Custom sizes available on request — contact us with your specific requirements.
| Size (Supplied ID) | Supplied ID — D (mm) | Flatten Width — W (mm) | Wall Thickness (mm) | Recovered ID — d (mm) |
|---|---|---|---|---|
| Φ 1.6 | 1.6 ± 0.20 | 3.5 ± 0.3 | 0.45 ± 0.10 | ≤ 0.80 |
| Φ 2.4 | 2.4 ± 0.20 | 5.0 ± 0.3 | 0.45 ± 0.10 | ≤ 1.20 |
| Φ 3.2 | 3.2 ± 0.23 | 6.2 ± 0.4 | 0.45 ± 0.10 | ≤ 1.60 |
| Φ 4.8 | 4.8 ± 0.25 | 8.8 ± 0.4 | 0.48 ± 0.10 | ≤ 2.40 |
| Φ 6.4 | 6.4 ± 0.28 | 11.4 ± 0.4 | 0.50 ± 0.10 | ≤ 3.20 |
| Φ 9.5 | 9.5 ± 0.32 | 16.5 ± 0.5 | 0.50 ± 0.11 | ≤ 4.75 |
| Φ 12.7 | 12.7 ± 0.36 | 21.6 ± 0.6 | 0.52 ± 0.11 | ≤ 6.35 |
| Φ 19.0 | 19.0 ± 0.40 | 32.0 ± 0.6 | 0.53 ± 0.11 | ≤ 9.50 |
| Φ 25.4 | 25.4 ± 0.45 | 42.2 ± 0.7 | 0.55 ± 0.12 | ≤ 12.70 |
* Sizes above are indicative. Please contact us for the full size range and custom dimensions.
Ladder Format (Pre-Cut)
Pre-cut sleeves held in a ladder carrier strip. Ideal for high-speed automated printing lines. Consistent spacing ensures reliable printer feed.
Continuous Reel
Continuous tubing on paper or plastic reels. Cut to any length required. Flexible and economical for varied marking needs.
| Size (Supplied ID) | Ladder Format (pcs/reel) | Continuous — Paper Reel (m/reel) | Continuous — Plastic Reel (m/reel) |
|---|---|---|---|
| Φ 1.6 | 2500 | 50 | 25 |
| Φ 2.4 | 2500 | 50 | 25 |
| Φ 3.2 | 2000 | 100 | 25 |
| Φ 4.8 | 2000 | 100 | 25 |
| Φ 6.4 | 2000 | 100 | 25 |
| Φ 9.5 | 1000 | 100 | 25 |
| Φ 12.7 | 1000 | 100 | 25 |
| Φ 19.0 | 500 | 100 | 25 |
| Φ 25.4 | 500 | 50 | 25 |
🖨️ Thermal Transfer Printers
- Standard industrial thermal transfer printers
- Use resin-based ribbon for best durability
- Produces sharp, solvent-resistant print
- Ideal for high-volume production runs
- Compatible with ladder format and continuous reel
🖨️ Laser Printers
- Standard desktop and industrial laser printers
- No ribbon required — direct toner printing
- Economical for lower volume requirements
- Good for prototyping and small batch marking
- Available in custom sheet format on request
Industries & Applications
Where PEP Printable Sleeves are used
Aerospace & Defense
Wire harness identification meeting MIL-DTL-23053 requirements. Permanent marking for long service life aircraft and defense systems.
Railways
Rolling stock and locomotive wiring identification. Approved by Indian Railways for permanent cable marking in rolling stock.
Industrial Control Panels
Panel builders and switchgear manufacturers use printable sleeves for fast, reliable wire identification and circuit documentation.
Power Distribution
Substation, transformer and switchgear wiring identification. Clear marking in high-density cable environments.
Automotive
Harness marking for OEM and aftermarket vehicle wiring. Sequential numbering, circuit codes, and part identification.
Telecom & Data
Network infrastructure, data center cable management, and telecom equipment identification and documentation.
Why Choose PEP Printable Sleeves?
Made in India. Trusted by ISRO, Indian Railways, BEL, BHEL and more.
Made in India
Manufactured at our ISO 9001:2015 certified facility in Malur, Karnataka. Faster lead times, competitive pricing, and local technical support.
Custom Printing Available
We can supply pre-printed sleeves with your part numbers, circuit codes, or sequential numbering — ready to use, straight out of the box.
Full Documentation
Complete test reports, certificates of conformance, and material traceability documents supplied with every order.
Flexible Quantities
From small evaluation samples to large production orders. Cut pieces, continuous reels, and ladder format available to suit your process.
